Selection Tool - Centrifugal Fan

Discharge Performance - Air density 1.225 [kg/m³]

Select the type of impeller:

Flow rate (m³/h):

Pressure (mmH₂O):

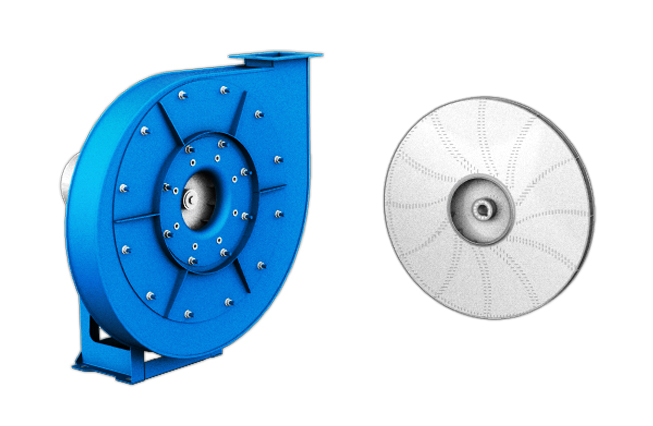

SERIE TPN

Ventilatori centrifughi ad alta pressione con girante a pale rovesce ad alto rendimento. Ideali per trasporto pneumatico, polveri, essiccazione e pressurizzazione. Adatti per industrie come fonderie, pastifici, forni e chimica.
Temperatura massima del fluido: 80°C standard, 150°C con ventolina di raffreddamento. Versioni speciali per temperature superiori.

Modello	kW	RPM	kg	m³/h	mmH₂O	dB(A)
TPN 400	1.1	2840	48	360–792	295–245	72
TPN 450	1.1	2840	57	360–900	375–350	73
TPN 451	1.5	2840	63	360–1152	375–310	74
TPN 500	1.1	2840	62	360–648	390–395	75
TPN 501	1.5	2840	65	360–1008	390–375	77
TPN 502	1.5	2840	65	360–792	460–460	77
TPN 503	2.2	2850	67	360–1440	460–380	77
TPN 560	1.5	2840	94	576–0	485–0	79
TPN 561	2.2	2850	96	576–1152	485–490	79
TPN 562	2.2	2850	98	576–900	580–590	80
TPN 563	3	2900	102	576–1620	500–460	80
TPN 564	3	2900	107	576–1296	595–595	81
TPN 565	4	2910	111	576–2160	595–500	81
TPN 630	3	2900	128	792–0	660–0	82
TPN 631	4	2910	136	792–1620	660–650	82
TPN 632	4	2910	136	792–0	750–0	83
TPN 633	5.5	2890	147	792–2628	660–570	82
TPN 634	5.5	2890	150	792–1836	750–735	87
TPN 635	7.5	2890	155	792–2988	750–630	87
TPN 710	7.5	2890	189	1152–2340	810–830	88
TPN 711	9.2	2900	196	1152–2988	810–800	88
TPN 712	9.2	2900	200	1152–2340	930–940	88
TPN 713	11	2920	220	1152–3780	820–740	89
TPN 714	11	2920	224	1152–2988	940–915	89
TPN 715	15	2925	230	1152–4716	940–760	89
TPN 800	11	2920	261	1620–2628	1060–1080	90
TPN 801	15	2925	267	1620–3780	1060–1050	90
TPN 802	15	2925	272	1620–2988	1250–1280	90
TPN 803	18.5	2925	278	1620–5328	1060–920	90
TPN 804	18.5	2925	283	1620–4212	1250–1230	90
TPN 805	22	2930	305	1620–5328	1250–1160	92
TPN 900	18.5	2925	400	2340–0	1370–0	91
TPN 901	22	2930	422	2340–4212	1370–1380	93
TPN 902	22	2930	428	2340–0	1570–0	94
TPN 903	30	2945	537	2340–6768	1370–1270	93
TPN 904	30	2945	543	2340–4716	1570–1580	94
TPN 905	37	2945	554	2340–6768	1570–1480	94
TPN 1000	37	2945	630	3348–5328	1730–1750	95
TPN 1001	45	2960	674	3348–7560	1730–1650	95
TPN 1002	45	2960	681	3348–6048	1960–1970	95
TPN 1003	55	2960	746	3348–9468	1730–1550	95
TPN 1004	55	2960	753	3348–7560	1960–1930	95
TPN 1005	75	2960	852	3348–11988	1960–1640	95
TPN 1120	55	2960	860	4716–0	2140–0	97
TPN 1121	75	2960	959	4716–9468	2140–2150	97
TPN 1122	75	2960	967	4716–7560	2440–2500	99
TPN 1123	90	2960	992	4716–13320	2140–1950	97
TPN 1124	90	2960	999	4716–9468	2440–2450	99
TPN 1125	110	2960	1158	4716–13320	2440–2250	99
