Selection Tool - Centrifugal Fan

Discharge Performance - Air density 1.225 [kg/m³]

Select the type of impeller:

Flow rate (m³/h):

Pressure (mmH₂O):

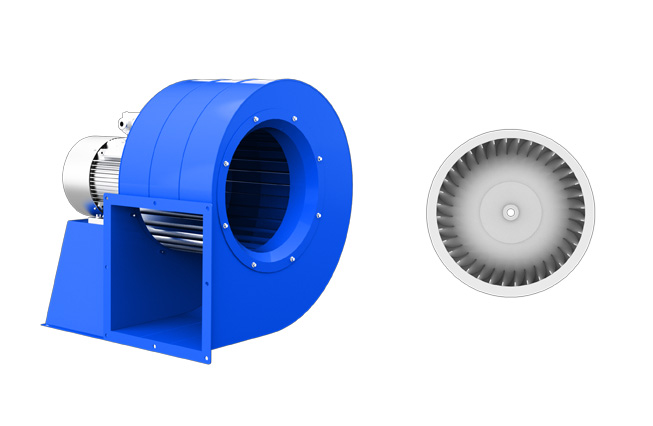

SERIE IB

Serie di ventilatori con girante a pale avanti (tipo sirocco). Progettata per basse pressioni e alte portate.
Adatta all’aspirazione di aria pulita o leggermente polverosa. Utilizzata in ventilazione e condizionamento di edifici industriali, essiccazione, verniciatura e smaltimento gas e vapori.
Temperatura massima del fluido: 80°C standard, 150°C con ventolina di raffreddamento. Versioni speciali per temperature superiori.

Modello	kW	RPM	kg	m³/h	mmH₂O	dB(A)
IB 201	0.18	1380	15	500–1330	24–24	56
IB 202	1.1	2850	22	940–1900	105–112	71
IB 203	1.5	2850	25	940–2700	105–105	71
IB 251	0.37	1400	22	1080–1700	39–42	63
IB 252	0.55	1400	26	1080–2700	39–39	63
IB 253	0.18	920	22	580–1700	17–17	54
IB 301	0.75	1420	34	1510–2410	59–61	68
IB 302	1.1	1420	38	1510–3800	59–62	68
IB 303	0.37	930	34	1080–3050	25–25	59
IB 351	1.5	1430	53	2700–0	81–0	73
IB 352	2.2	1430	62	2700–5400	81–86	73
IB 353	3	1430	66	2700–6800	81–84	73
IB 354	0.75	950	50	1900–4250	36–37	64
IB 401	3	1430	76	3400–5400	104–108	77
IB 402	4	1430	83	3400–7600	104–112	77
IB 403	5.5	1430	113	3400–10800	104–107	77
IB 404	1.5	950	72	2700–6100	47–49	68
IB 451	5.5	1450	128	5400–0	138–0	81
IB 452	7.5	1450	140	5400–10800	138–146	81
IB 453	11	1450	190	5400–15300	138–140	81
IB 454	2.2	950	99	3800–7600	59–63	72
IB 455	3	950	128	3800–10800	59–58	72
IB 501	4	965	157	5400–8500	98–101	76
IB 502	5.5	965	157	5400–10800	98–104	76
IB 503	7.5	965	207	5400–13500	98–105	76
IB 504	2.2	710	144	4750–7600	53–56	69
IB 505	3	710	157	4750–10800	53–56	69
IB 551	5.5	965	171	6100–9550	118–120	78
IB 552	7.5	965	223	6100–12000	118–123	78
IB 553	11	965	245	6100–17000	118–128	78
IB 554	3	710	171	5400–9550	64–67	72
IB 555	5.5	710	223	5400–15300	64–66	72
IB 601	7.5	965	240	8500–0	141–0	81
IB 602	11	965	261	8500–15300	141–146	81
IB 603	15	965	331	8500–19000	141–151	81
IB 604	5.5	720	240	8500–13500	79–83	75
IB 605	7.5	720	261	8500–17000	79–84	75
