Selection Tool - Centrifugal Fan

Discharge Performance - Air density 1.225 [kg/m³]

Select the type of impeller:

Flow rate (m³/h):

Pressure (mmH₂O):

Richiedi Preventivo

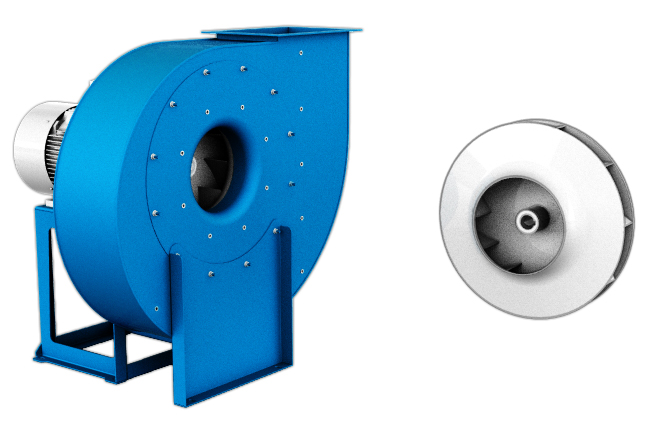

SERIE ARP

Ventilatore centrifugo a pale rovesce, ad alto rendimento e bassa rumorosità.
Progettato per aspirare aria polverosa o con materiali granulati. Ideale per falegnamerie (segatura e trucioli, esclusi materiali filamentosi), industrie meccaniche (sbavature e polveri di smerigliatura), cementifici, ceramiche, mulini, mangimifici, concerie, fonderie, tessili e chimiche.
Temperatura massima del fluido: 80°C standard, 150°C con ventolina di raffreddamento. Versioni speciali disponibili per temperature superiori.

Modello	kW	RPM	kg	m³/h	mmH₂O	dB(A)
ARP 400	2.2	2850	73	1330–3050	224–191	77
ARP 401	3	2900	81	1330–4750	268–117	78
ARP 450	4	2910	99	1900–4250	297–258	80
ARP 451	5.5	2890	112	1900–6850	341–146	83
ARP 500	7.5	2890	145	2700–6150	375–297	84
ARP 501	11	2930	203	2700–9500	434–175	86
ARP 560	11	2930	227	3850–8500	468–390	89
ARP 561	15	2935	240	3850–13500	536–224	88
ARP 562	1.5	1400	137	1900–4250	117–96	67
ARP 563	2.2	1420	144	1900–6850	135–57	69
ARP 630	22	2940	311	5400–12000	619–492	89
ARP 631	30	2950	364	5400–19000	707–302	90
ARP 632	3	1430	147	2700–6150	155–129	71
ARP 633	4	1425	155	2700–9500	177–76	72
ARP 710	37	2950	440	7650–17000	795–643	93
ARP 711	45	2950	481	7650–27000	912–390	94
ARP 712	4	1425	246	3850–8500	189–152	74
ARP 713	5.5	1440	258	3850–13500	226–97	75
ARP 800	75	2950	603	10800–24200	1014–819	94
ARP 801	90	2950	694	10800–38200	1155–487	96
ARP 802	7.5	1450	331	5400–12000	248–208	77
ARP 803	11	1450	398	5400–19000	288–122	80
ARP 900	132	2960	938	15300–34200	1287–1033	98
ARP 901	160	2960	964	15300–54000	1467–614	98
ARP 902	15	1450	478	7650–17000	317–268	80
ARP 903	22	1470	534	7650–27000	366–156	81
ARP 904	4	960	388	4750–10800	128–105	68
ARP 905	5.5	960	399	4750–17000	148–58	70
ARP 1000	30	1470	671	10800–24200	390–331	85
ARP 1001	37	1475	713	10800–38200	453–195	86
ARP 1002	7.5	965	556	6850–15300	161–132	72
ARP 1003	11	965	587	6850–24200	187–74	73
ARP 1120	45	1475	985	15300–34200	497–395	87
ARP 1121	55	1475	1056	15300–54000	575–230	89
ARP 1122	15	965	825	9500–21600	210–175	75
ARP 1123	18.5	965	906	9500–34200	244–96	75
ARP 1250	75	1475	1356	21600–47500	619–502	91
ARP 1251	110	1480	1826	21600–76500	712–292	92
ARP 1252	22	970	1111	13500–30600	259–207	78
ARP 1253	30	970	1182	13500–47500	312–133	78
